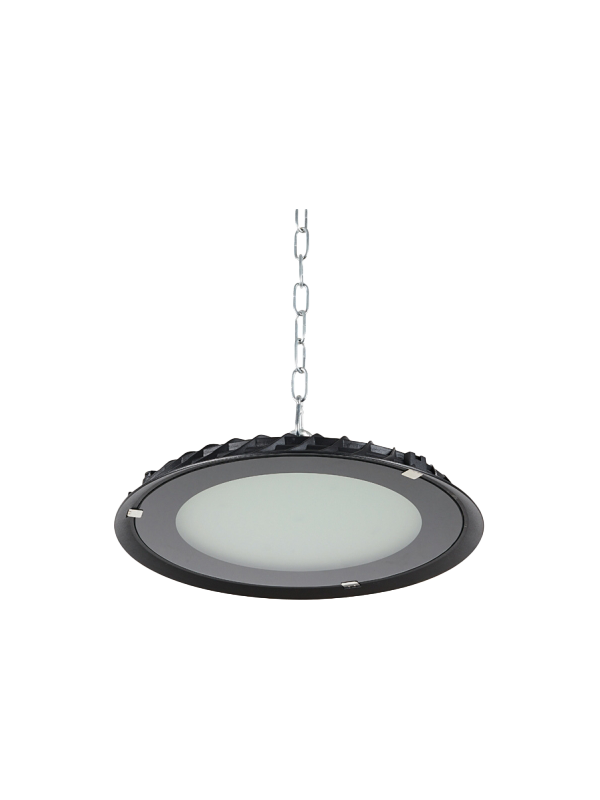

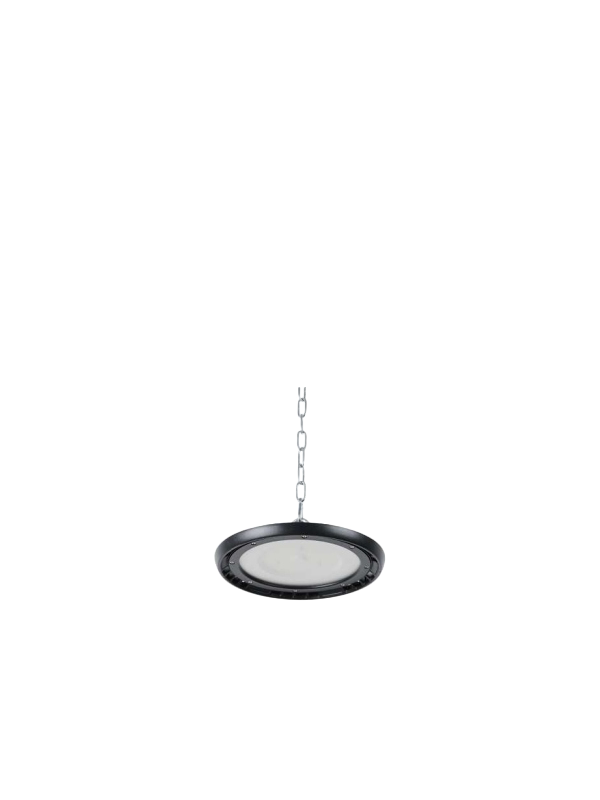

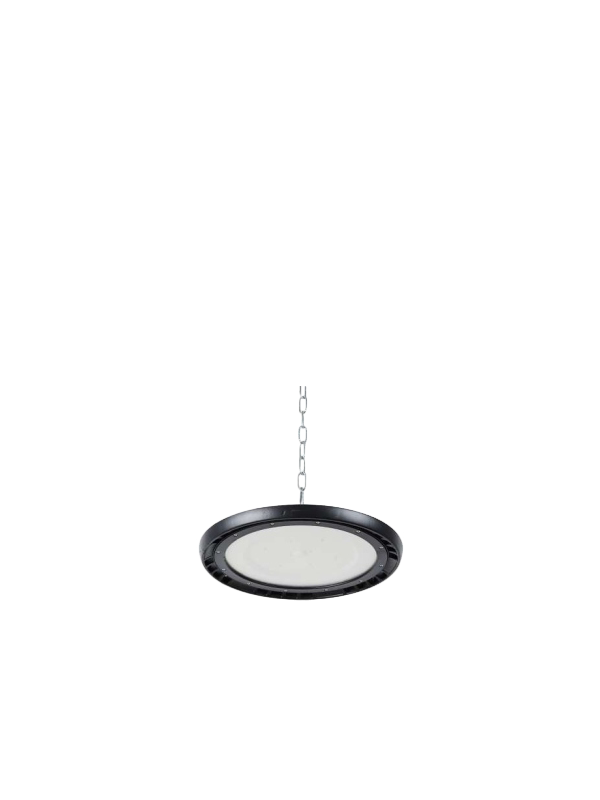

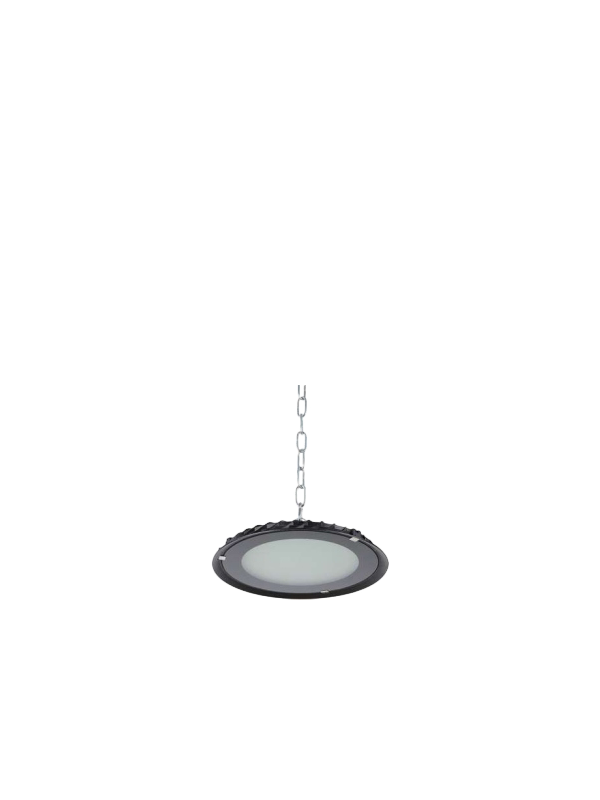

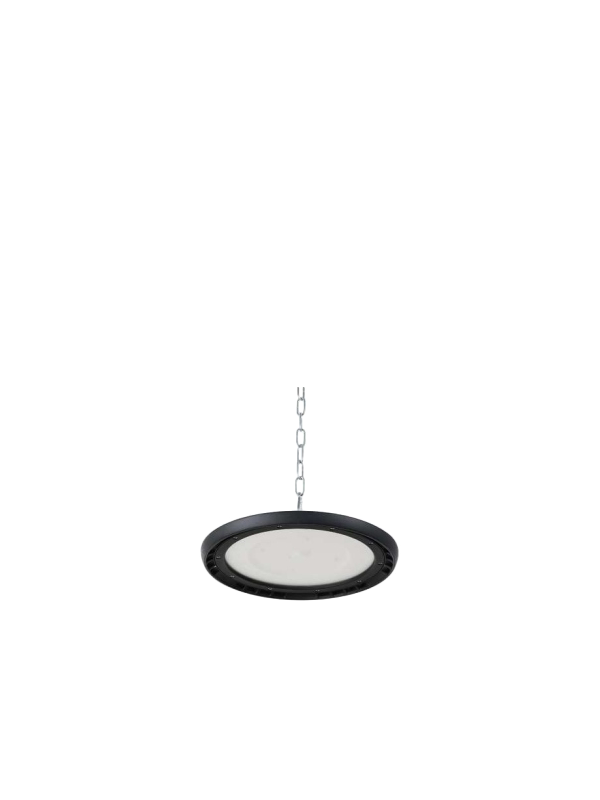

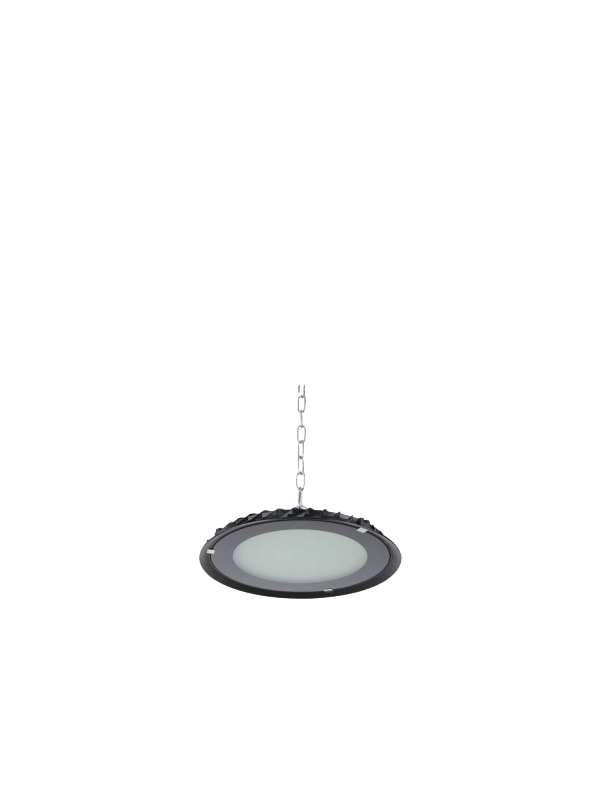

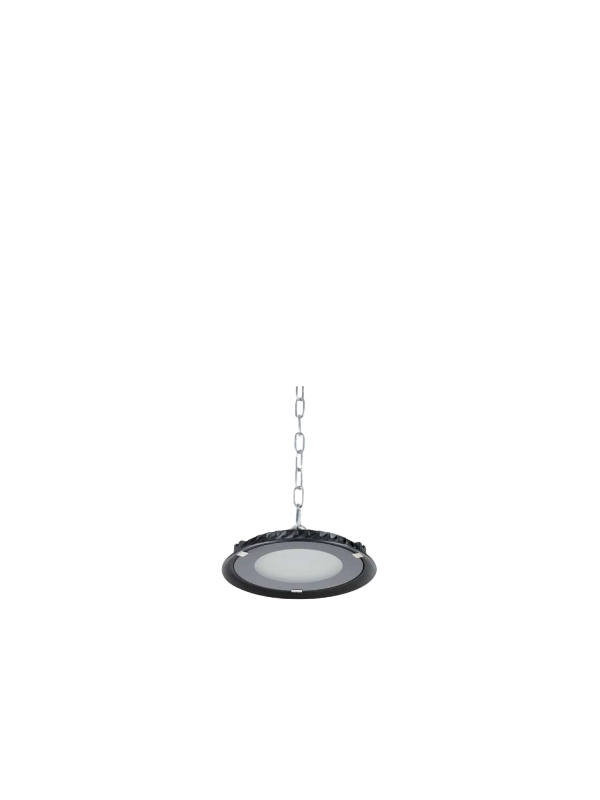

LED High Bay Light S12

LED High Bay Light S12 is an industrial lighting solution designed for warehouses, workshops, manufacturing areas, and other large-space applications. It features a die-casting aluminium body with tempered glass and provides four color temperature options from 3000K to 6500K. With a CRI of ≥80 and a power factor above 0.9, it is suitable for distributors, wholesalers, contractors, and project buyers.

Submit

PREV：No previous article
NEXT：No next article

Specific Applications

The LED High Bay Light S12 can be used for:

Warehouses and storage facilities

Manufacturing and production areas

Workshops and industrial sites

Logistics and distribution facilities

Commercial and large-space buildings

Industrial lighting projects

Core Functions

The LED High Bay Light S12 provides the following functions:

Four color temperature options: Available in 3000K, 4000K, 5000K, and 6500K.

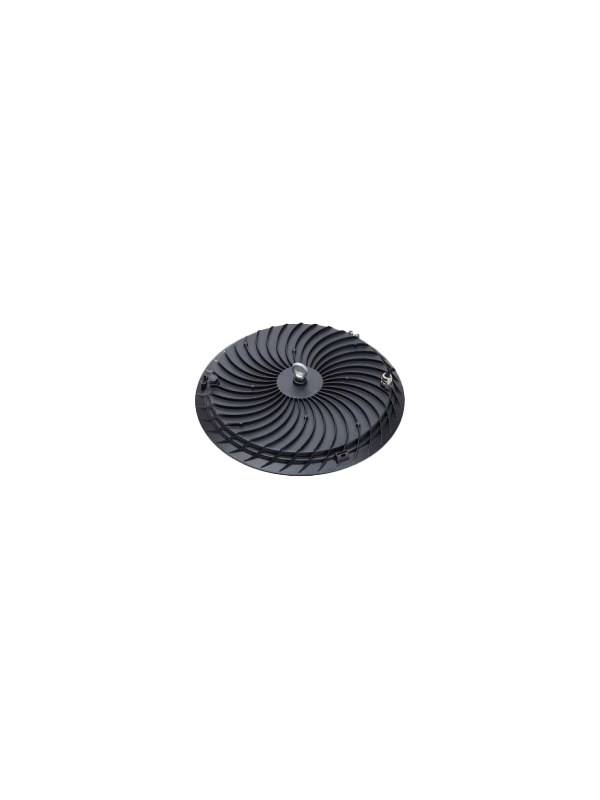

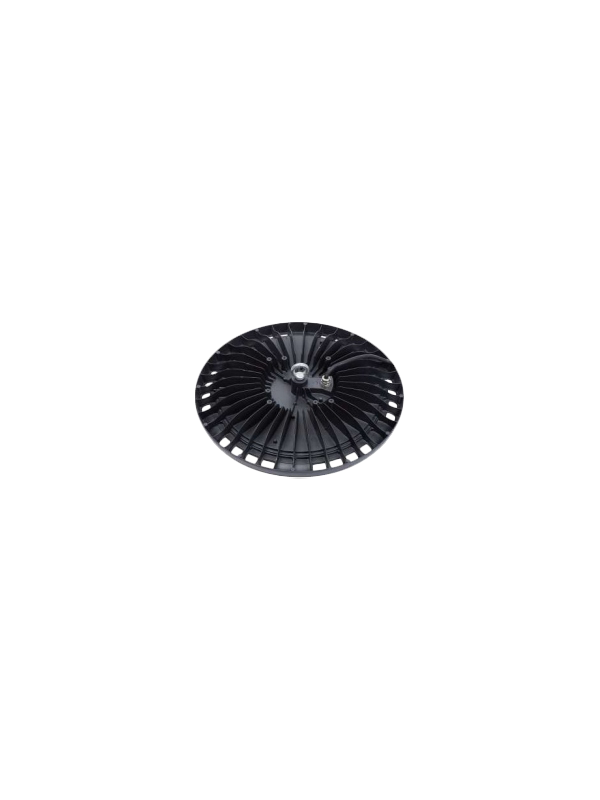

Die-casting aluminium body: Provides the main housing structure for the high bay light.

Tempered glass: Used for the front glass of the lighting assembly.

Color rendering: Ra is ≥80.

Power factor: PF is >0.9.

Wide working temperature: Supports operation from -20°C to 50°C.

AC input: Rated voltage is 220-240V~ at 50/60Hz.

Technical Specifications

Model	Power	LED Quantity (PCS)	Luminous Flux(lm)	IP Level	Dimension (mm) L x B x H	Net Weight (g)
S1205-100W	100W	140	12000	IP65	Φ280x95	1400
S1206-150W	150W	210	18000	IP65	Φ335x95	2320
S1207-200W	200W	280	24000	IP65	Φ400x100	3480

Model	Power	LED Quantity (PCS)	Luminous Flux(lm)	IP Level	Dimension (mm) L x B x H	Net Weight (g)
S1205N-100W	100W	148	12000	IP65	Φ240x78	1230
S1206N-150W	150W	240	18000	IP65	Φ305x80	1950
S1207N-200W	200W	288	24000	IP65	Φ360x82	2600

OEM / ODM Customization

The LED High Bay Light S12 supports customization for bulk B2B orders, including:

Product Color: Custom color available

Printing: Custom printing available

Packaging: Custom packaging available

Customization details can be confirmed according to order quantity, packaging requirements, and target market.

Purchasing Information

Parameter	Specification
MOQ	500 pcs
Lead Time	40 days
Payment Terms	30% deposit, balance against copy of B/L
Shipping Method	Sea freight

For distributors, wholesalers, contractors, and project buyers, product specifications, customization, packaging, and delivery details can be confirmed before bulk production.

FAQ

1. What is LED High Bay Light S12 used for?

It is suitable for warehouses, manufacturing areas, workshops, logistics facilities, and other large-space lighting projects.

2. What color temperatures are available?

The LED High Bay Light S12 is available in 3000K, 4000K, 5000K, and 6500K options.

3. What material is used for the high bay light?

The product uses a die-casting aluminium body with tempered glass.

4. What is the working temperature range?

The product supports a working temperature range of -20°C to 50°C.

5. What are the MOQ and delivery terms for LED High Bay Light S12?

The MOQ is 500 pcs and the delivery time is 40 days. Payment is 30% deposit with the balance against a copy of B/L. Shipping is by sea freight.
